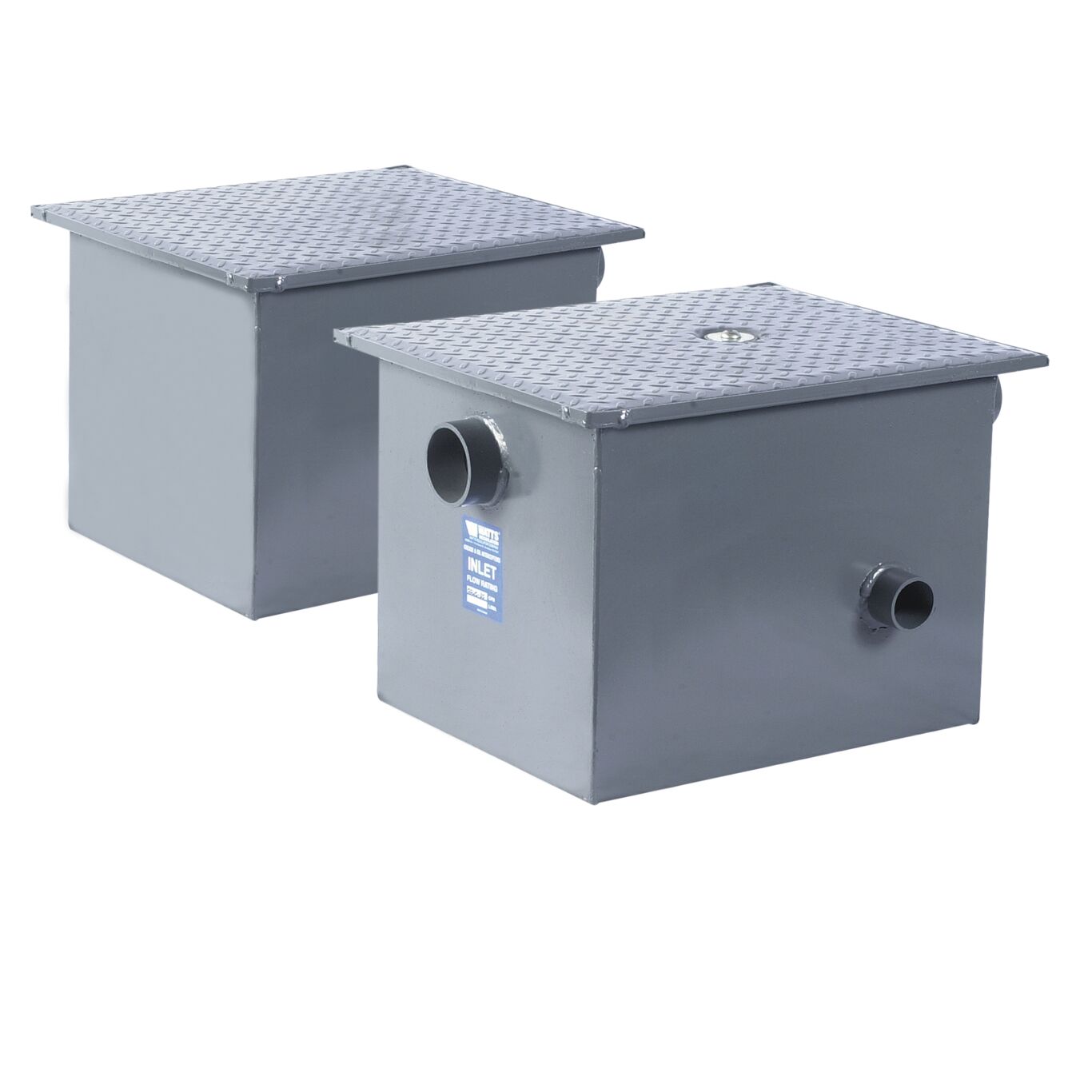

WO-500
Oil Interceptor with Secondary Oil Storage Tank
Watts Drainage Products WO-500 epoxy coated inside and outside fabricated steel oil interceptor with flow rating of 10 to 75 GPM. Unit shall include sediment bucket, code approved deep seal trap, cover securing bolt(s), adjustable automatic draw-off assembly, double vent connections, removable stainless steel calibrated orifice plate and epoxy coated, non skid removeable cover. Supplied with secondary storage tank, (all interconnecting and vent piping by others).
Features
- Fabricated steel is epoxy coated inside and outside for smooth finish and long life
- Secondary storage tank requires interconnecting and vent piping by others
- Code approved integral deep seal trap
- 2 in. (51) adjustable automatic draw-off assembly
