FS-890

G-SERIES Product Image
×

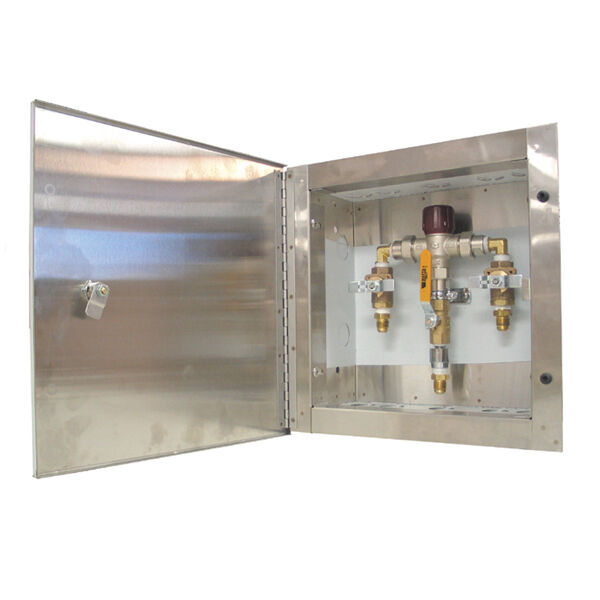

Water Supply Control Box

Series FS-890 stainless steel water supply control box for sanitary can wash and flushing rim floor drains, with thermostatic mixing valve, 1/2 in. (15mm) NPT outlet connection, 1/2 in. (15mm) NPT hot and cold water inlet connections, integral atmospheric vacuum breaker, and hinged locking door.

Features

  • 1/2 inch NPT piping connections
  • Specified with FS-800 Series Can Wash Drains
  • Hot/cold water supply
  • Locking stainless steel box
