FD-230-C-A
×
![]()
Combined Floor Drain/Cleanout with Integral Trap

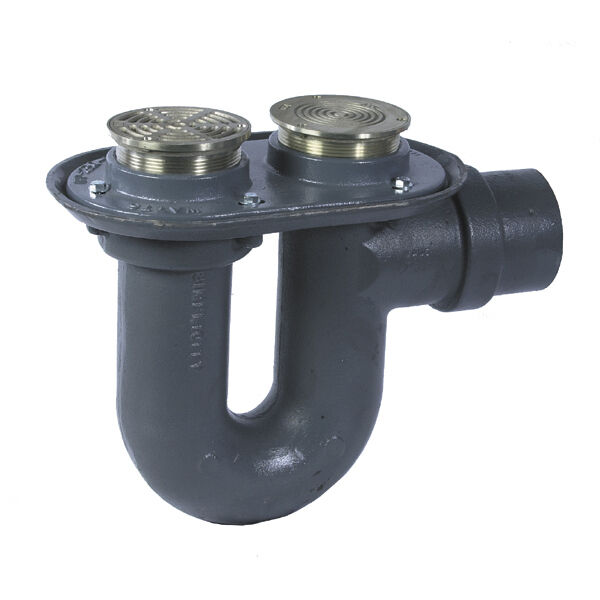

Watts Drainage Products FD-230-C-A epoxy coated cast iron floor drain/cleanout combination with anchor flange, integral trap, membrane clamp with primary and secondary weepholes, 1/4 in. (6) thick (specify diameter) nickel bronze strainer, 5 in. (127) diameter nickel bronze cleanout, and no hub (standard) outlet.
Features
- Industrial grade cast iron floor drain and cleanout with acid resistant epoxy coating for long life
- Nickel bronze strainer and cleanout are highly resistant to wear
- Weep holes for double drainage and protection from deterioration of surrounding drain area
- No hub (standard) outlet for easy installation
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
