QT-101-D-TAS

Product Image - QT-101-D-TAS
Product Image - QT-101-D-TAS
Product Image - 8
Product Image - 8
×

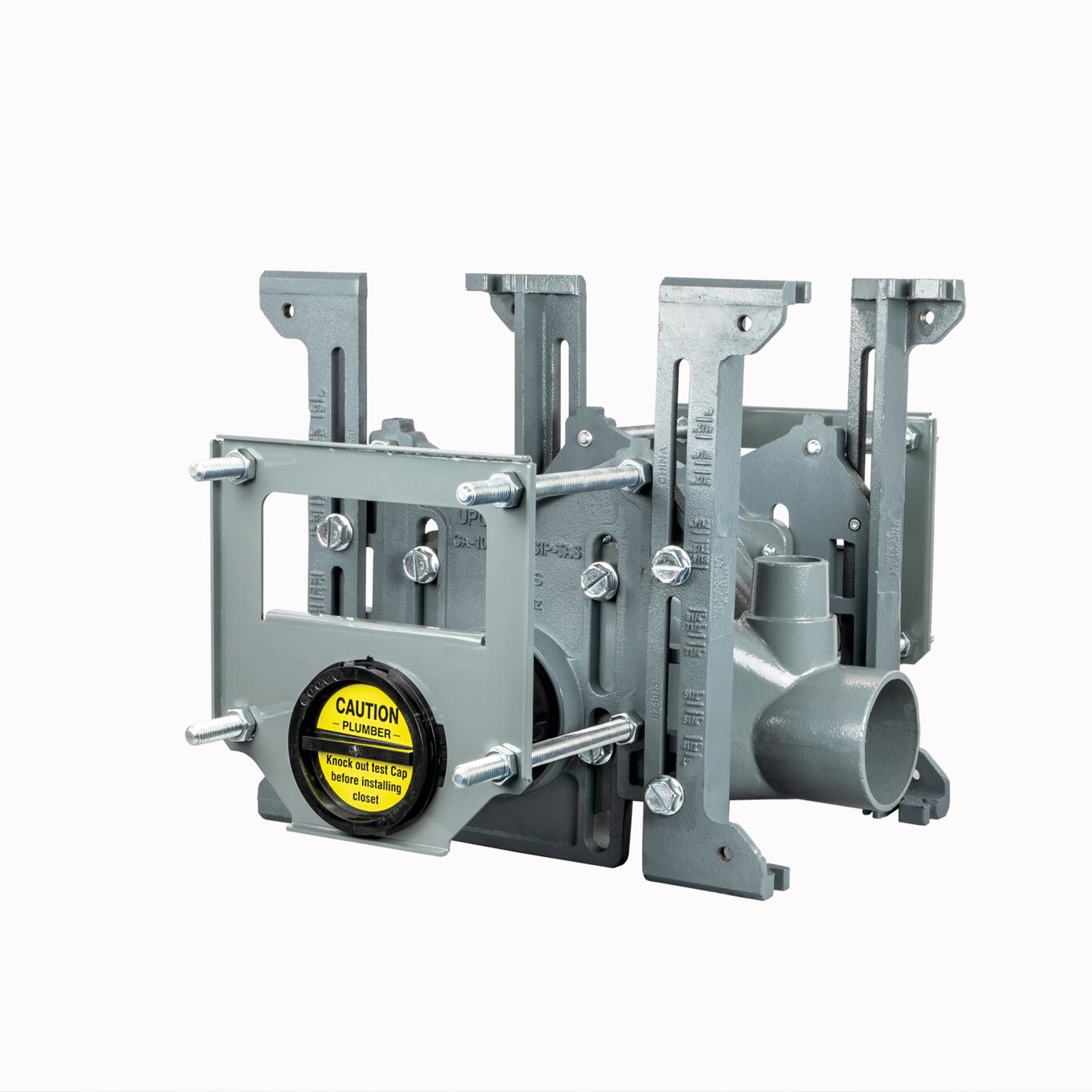

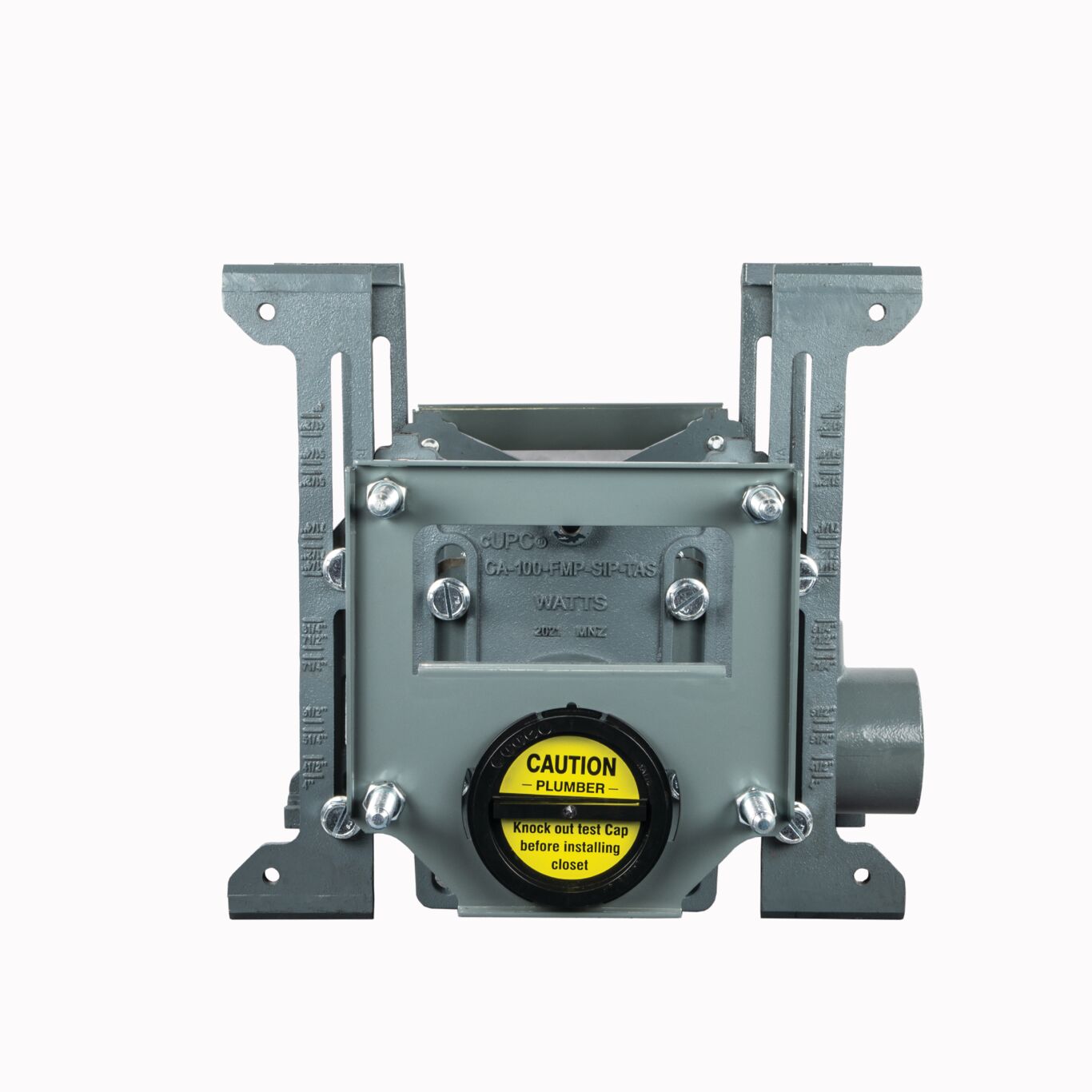

QT QuickTurn™ Back-To-Back Horizontal Closet Carrier for 4" Rough-In

Watts QT-101-D-TAS back-to-back horizontal water clos­et carrier for 4"(102) bowl outlet rough-in with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, epoxy coated cast iron patented faceplate assembly, epoxy coated cast iron foot supports with incremen­tal height markings, adjustable for ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. Carrier complies with the requirements of ASME A112.6.1M up to a 500 lb. (227 kg) static load.

Features

  • Patent-pending wall plate
  • Quarter-turn locking nipple seals mechanically with an O-ring
  • Nipple is fully adjustable from outside finished wall
  • 3/8" threaded flush valve mounting bosses
  • Same size bolt heads
